zilav

[WIPz] TES5Edit

Recommended Posts

On 06.02.2018 at 3:53 PM, Kesta said:

Is there a chance for additional spreadsheets ? Food and Ingredients ones would be useful.

Do you have some pieces of script somewhere (you or sheson) to make automatic lod assignments to static ? The "auto-populate" function from the CK, but in batch, and a bit more flexible.(That one I can actually write myself, just don't want to re-invent the wheel, especially since I know a lot of work have been done in xEdit scripting about LODs). Pretty sure there is something like this somewhere, at least in dyndolod, that I can adjust to my needs.

Just export food and ingredients to excel or any other spreadsheet software and import back. I think it is a trivial task for you.

I don't have a LOD assignment script, but again it will be a simple 20-30 lines script at most. Can write it for you if you really need, but will need more info on how to associate LOD meshes with a STAT record:  (partial?) matching by full model file name, in what folder, etc.

Share this post


Link to post
Share on other sites
21 hours ago, zogzog68 said:

hi everyone

i'm french so excuse my poor english, but what i'm writing here is simple

i loaded USSEP and 3DNPC, and got the same errors reported page 76:


[00:04]     REFR \ XNDP - Navigation Door Link \ Teleport Marker Triangle -> <Warning: Navmesh triangle not found in "[NAVM:000FC127] (in GRUP Cell Temporary Children of WindhelmDocksExterior01 [CELL:0000B4B9] (in Tamriel "Skyrim" [WRLD:0000003C] at 34,8))">
[00:16] All Done!



and i'm unable to solve it.

can anyone telle me what i can do to resolve such type of problems ?

It's usually due to a conflict. Something has overwritten a navmesh change in the affected cell (34,8) and caused it to display an error that should not be there. Checking for errors should almost never be done with more than one mod loaded to avoid problems like this. Getting a conflict report would be enough to know that 3DNPCs is probably altering Windhelm's navmeshes in a way that hasn't taken bugfixes into consideration.

Share this post


Link to post
Share on other sites

The errors alt refers to are not caused by UFO4P though. They are only causing errors further up the chain to be revealed in the master file. It would be so much nicer if these error reports assigned the cause to the proper place instead of landing it in the mod author's lap as though it's now their problem.

Granted, we'll probably have to try and fix this at some point since it's a bug, but it would be nice if we weren't the ones people see as having created the bug in the first place.

Share this post


Link to post
Share on other sites

Yes such errors are not plugin related, but rather load order related in the sense that it checks for wrong data using all loaded plugins. So there could be even a plugin loaded after USKP which removes USKP fixes, and error will be shown for USKP even though the blame is on another plugin. This is simply how the game works using the rule of one, not much I can do about that. I prefer to show all found errors instead of trying to hide them based on the applied scope of error checking in xEdit.

Share this post


Link to post
Share on other sites
On 2/8/2018 at 7:37 AM, zilav said:

Just export food and ingredients to excel or any other spreadsheet software and import back. I think it is a trivial task for you.

I don't have a LOD assignment script, but again it will be a simple 20-30 lines script at most. Can write it for you if you really need, but will need more info on how to associate LOD meshes with a STAT record:  (partial?) matching by full model file name, in what folder, etc.

Didn't thought about exporting them externally... should have ^^ Though come to think of it, I think the CK also have an option to export the content of the objectwindow.

As for the LOD, yeah, I can do it too. I'll share it whenever it's actually working for me, in case you want to make some polish and include it (let's face it, for what I need, I'm just going to hardcode matching pattern and discovery path >_< )

Share this post


Link to post
Share on other sites

Any ideas on the following incomplete descriptions (SKSE64):

TLOD //after LAND & NAVM

TOFT // After EFSH, before EXPL

DOBJ: Default Object Manager: DNAM Note against IDLM:    "BGSIdleMarker / BGSDefaultObjectManager? strange"

DLVW: Dialog View



The formtype enum may provide a clue on the ones near the end of the list:

    kFormType_LensFlare,            //
    kFormType_Unk88,               // LSPR: LightingShaderProperty: Refraction ???
    kFormType_VolumetricLighting,    //
    kFormType_Unk8A,             // ? Hopefully more info in Fallout?

Thanks.



Share this post


Link to post
Share on other sites

Great, thanks!

Yes, TOFT (suspiciously close to OTFT, but no) -well as TES shortenings could be anything- Type OF Terrain/Trap/Trigger? The Unk8A remains a mystery- but it will get tested! :)

Share this post


Link to post
Share on other sites

Someone reported that my mod for SSE is the 43 version and I checked my esp and I too have the 43 version.  Why is that?  Does it matter, if it's not the 44 version?  Just curious.

If it matters I've checked my mod for errors in SSEEdit 3.2 and the message was this.

[00:00] Checking for Errors in [01] Skyrim Map Markers.esp

How strange, I thought I use the 3.2.1 version, but no I didn't instead I have the 3.2 version.

Share this post


Link to post
Share on other sites

It matters. You need to take your LE mod and load it into the SSE CK, then save it. That will convert all of the forms to the proper version. Failing to do this will lead to corruption and errors during gameplay that people are having a hard time pinning down.

Share this post


Link to post
Share on other sites

For LAND record, the DATA field (4 unkown bytes) appear to be an indicator of which fields the record contains. For sure if it's 1D000000 , the landscape won't have Vertex Colors, even if there is actual datas in the VCLR field. 1F000000 seems to be the default where everything work.

Share this post


Link to post
Share on other sites
10 hours ago, Kesta said:

For LAND record, the DATA field (4 unkown bytes) appear to be an indicator of which fields the record contains. For sure if it's 1D000000 , the landscape won't have Vertex Colors, even if there is actual datas in the VCLR field. 1F000000 seems to be the default where everything work.

You can check that in all games since they all have that field. If you can confirm this field to be the flags indicating the presense of specific land data, then I'll update definitions.

Share this post


Link to post
Share on other sites

Hi guys,



can anyone please write a small script for me? It needs to create conditions based on a csv input.

Thanks for your consideration.

Share this post


Link to post
Share on other sites

Hello. I've searched this topic for the string SkyrimSE.exe, but no occurences found. So there is a good chance this was not asked: When opening SSEEdit and loading the plugins with "OK" button, Skyrim.exe appears in the list. The game's exe is actually SkyrimSE.exe, which gets me asking: Is this known? another question: Is this correct? And finally, is this just a visual annoyance, or something that can lead to issues? Thanks from the mountain for an answer, cheers.

Share this post


Link to post
Share on other sites

Hello. Tes5Edit Scripts: How I can check existence of record by formid in string format (example "000d001a")? I did find function RecordbyFormID, but it requiers aiFormID as integer. I can't to cast string like this ''000d001a'' in integer.

Share this post


Link to post
Share on other sites
1 hour ago, elderscrollerr said:

Hello. Tes5Edit Scripts: How I can check existence of record by formid in string format (example "000d001a")? I did find function RecordbyFormID, but it requiers aiFormID as integer. I can't to cast string like this ''000d001a'' in integer.

StrToInt('$' + hexstring)

Keep in mind that RecordByFormID() requires a file formid (leading byte index is the master index in TES4 header), not a load order formid (index is a load order index of a plugin). You can convert load order FormID to file FormID with LoadOrderFormIDtoFileFormID()

Share this post


Link to post
Share on other sites
2 hours ago, zilav said:

StrToInt('$' + hexstring)

Keep in mind that RecordByFormID() requires a file formid (leading byte index is the master index in TES4 header), not a load order formid (index is a load order index of a plugin). You can convert load order FormID to file FormID with LoadOrderFormIDtoFileFormID()

Thanks, but I already rewrite script in another logic (separate launch for each loaded plugin and use IInterface)

Share this post


Link to post
Share on other sites

Hi zilav,

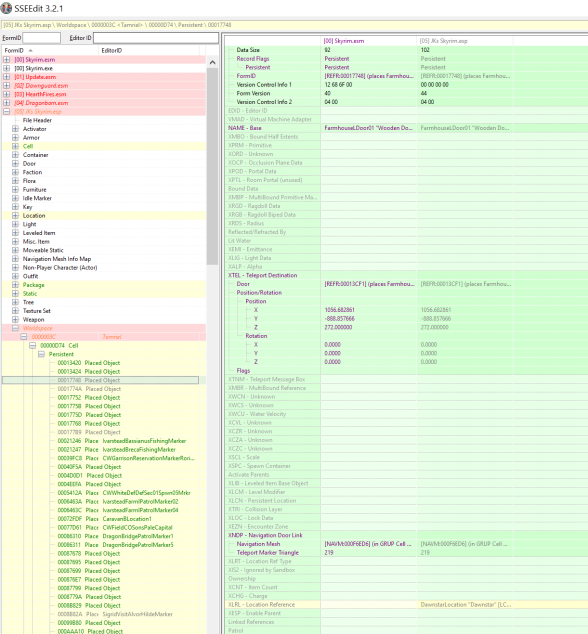

When doing automated cleaning on the new JK's Skyrim esp, I noticed that Records with changes on the "Location Reference" are being flagged as ITM's.  Added a picture for reference, but all these changes (about 30 or so) get removed if doing automated cleaning.

-campolo313



Location Reference.png

Edited by TJC313
Picture was wayyyy too small

Share this post


Link to post
Share on other sites

Those location references are extraneous data the CK saves when editing something. When it's the only change in the file then xEdit will clean them out as part of the normal process since that location data is not used for anything by the game unless the reference also has a location reference type attached to it.

Share this post


Link to post
